Neutron CW Powder Data - Yttrium Iron/Aluminium Garnet

In this tutorial you will refine the structure of yttrium iron/aluminum garnet using constant wavelength neutron data. The structure is cubic with four different atomic sites two of which are occupied by both iron and aluminum. The data was taken on the D1a powder diffractometer at the ILL, Grenoble, France using 1.909Ε wavelength neutrons.

If you have not done so already, start GSAS-II.

Step 1: read in the data file

1.      Use the Import/Powder Data/from GSAS file menu item to read the data file into GSAS-II. This read option is set to read any of the powder data formats (except neutron TOF time map files) defined for GSAS (angles in centidegrees). Other submenu items will read the cif format or the xye format (angles in degrees) used by Topas, etc.  Change the file directory to Exercises/garnet to find the file; you will need to change the file type to All files (*.*) to find the desired file.

2.      Select the garnet.raw data file in the first dialog and press Open. There will be a Dialog box asking Is this the file you want? Press Yes button to proceed.

3.      Select the inst_d1a.prm instrument parameter file in the second dialog and press Open.

At this point the GSAS-II data tree window will have several entries and the plot window will show the powder pattern

Step 2: Create the phase

1.      Use the Data/Add phase menu item to begin creation of the new phase for this garnet; enter a phase name in the dialog box, we assume ‘garnet’.

2.      At the bottom of the GSAS-II tree find Phases & click the ’+’ box to expand it. Then click on garnet to select it; the Phase data for garnet window will appear and the General tab is visible.

3.      The Phase type is correctly set to “nuclear”; other options will become valid in the future. Enter the space group ‘I a 3 d’ (spaces between axial fields are required in GSAS-II) and press Enter, the space group information window will appear

Press OK to exit. The General tab display will change (principally changes in lattice parameter display).

4.      Enter the lattice parameter for garnet (a=12.19) in the appropriate field and press Enter. The display will change again to show the cell volume.

5.      Click on the Data tab in the Phase data for garnet window and select Edit/Add powder histograms in the menu for this window. A Use data window will appear with only one choice PWDR garnet.raw: BANK 1. Select it and press OK. The Data tab will change; press the Show PWDR garnet.raw: BANK 1 check box; the window will change again

I’ve pulled down the bottom of the window to show the whole thing. This window is the home of parameters that are both phase and data set dependent. These include phase fraction, crystallite size, mustrain & preferred orientation. None of these are needed for this refinement so you can unclick the Show check box.

Step 3. Insert the atoms

Click on the Atoms tab; this is where you will insert the atoms for the garnet structure. The 6 sets of atom coordinates are:

TYPE

X

Y

Z

Y

0.12500

0. 00000

0. 25000

FE

0.00000

0.00000

0.00000

AL

0.00000

0.00000

0.00000

AL

0.37500

0.00000

0.25000

FE

0.37500

0.00000

0.25000

O

-0.03000

0.05000

0.15000

To begin use the Edit/Append atom in the menu on the Atoms tab 6 times to create the default set of atom places in the table; the table will look like

Then for each atom to be inserted, double click on the “H” in the Type column; a Periodic Table will appear

Each element has a small pull down selection for the possible valences (usually choose the “zero” one). Select “Y”, the Table will vanish and the Name and Type for that atom will change. Then enter the values for x, y and z; you can use Tab to move to the next one. You may use fractions for the atom coordinates (e.g. 1/4, 3/8). Do this for each atom in the Atoms table. You can leave both frac and Uiso at the default values. Your result should look like


You can now do your first Rietveld refinement on this problem. To do this, do Calculate/Refine in the GSAS-II data tree menu; a file dialog will ask you for a name for this project; you can change the directory if you wish. We assume the name “YAG”; the current project will be saved as YAG.gpx and the first backup file (YAG.bak0.gpx) will also be created and then the Rietveld refinement will be performed. By default, only the histogram scale factor (found under Sample Parameters for PWDR garnet.raw: BANK1 in the GSAS-II data tree) and 3 background coefficients are refined. The resulting powder pattern

shows a pretty poor fit (Rwp ~33%) and details can be found in the YAG.lst file. What appears to be in error includes some structural features (I’d first suspect site fractions for the Fe/Al sites) and something about the peak positions (lattice parameter & zero point). We can introduce all these parameters now.

1.      Go to PWDR garnet.raw:BaNK1/Instrument Parameters and check the Refine? for Zero.

2.      Go to Phases/garnet and check Refine unit cell in the General tab.

3.      Next go to Constraints in the main “Loaded Data” list in the GSAS-II data tree. You will see an empty window with 3 tabs; Phase constraints is the one you want. Select Edit/Add equivalence from the menu. You will see the following new window

select 0::AUiso:1 for Fe(2) and press OK; a new window will appear

select 0::AUiso:2 for Al(3) and press OK. That will form the first equivalence you need between the Fe and Al atoms that occupy the atom site at 0,0,0 in the cell. This shows up in the Constraints window.

Now do the same for the atoms 0::AUiso:3 for Al(4) and 0::AUiso:4 for Fe(5) to make that pair of atoms have the same Uiso.

4.      Next select Edit/Add constraint from the Phase Constraints tab. A now familiar window will appear; select 0::Afrac:1 for Fe(2) and press OK. Again you will see the same second window; select 0::Afrac:2 for Al(3) and press OK. Do the same thing for 0::Afrac:3 for Al(4) – you may have to scroll down the list to see this – and 0::Afrac:4 for Fe(5). When done the Constraints window should look like

This process set the equivalences/constraints for the two Fe/Al sites in the garnet so that refinement of frac and Uiso will succeed. GSAS-II constraints will correct the site fractions and Uiso values so that they conform to the constraints as written. You need not be concerned about their starting values beforehand. Also note the way each parameter was named; the general form is p:h:name:num where p is a phase number, h is a histogram number, name is the parameter name and num is an optional number (e.g. an atom number).

5.      Go to the Phases/garnet item in the GSAS-II data tree and select the Atoms tab. Note the frac values are unchanged from what you originally entered. Don’t worry, they will be corrected in the next refinement. We now have to set the refinement of frac for the Fe/Al sites. There are many ways to do this, we will show you one method now. Select row 1 for Fe(2) and then holding the Ctrl key down select rows 2-4; they will appear all gray. Next select Edit/Set atom refinement flags from the Atoms menu; a new window will appear



For now select F – site fraction. You could select all three, GSAS-II would refine frac & Uiso but not the coordinates as they are fixed as special positions in this case. The Atom window will have an F in the refine column each of these atoms.

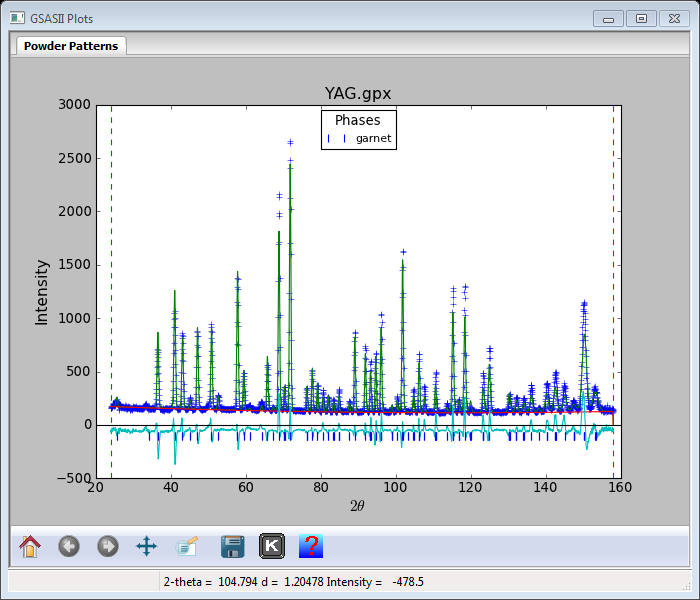

You are now ready for your second Rietveld refinement; select Calculate/Refine from the GSAS-II data tree window. There is now a much better fit with Rwp ~12% and a powder pattern that looks like

There appears to be some differences in peak intensities and an interesting offset at the low end of the pattern. Let us add the remaining atom parameters (Uiso for each and the O(xyz) parameters. Go to Phases/garnet and select the Atoms tab.

Notice that the frac values for the Fe/Al atoms now conform to the constraints. For each atom in turn, double click on the refine box. A pull down list will appear, select U for the Y atom, FU for Fe/Al atoms and XU for the O atom. Your list should look like

when done. Now you can do your third Rietveld refinement; select Calculate/Refine. The resulting fit is

with Rwp ~8%. There is still an apparent peak offset at the ends of the pattern and perhaps some misfit of the peak widths.

The latter are determined by the U, V & W parameters found in the PWDR garnet.raw: BANK1/Instrument Parameters window. Go there and select their Refine? flags. Next go to Sample Parameters.

Notice that the Histogram scale factor is already being refined. Now you will want to refine both Sample X displacement and Sample Y displacement. The values will be in mm if the Goniometer radius is correct; enter 650 for that value. Now you can do another Rietveld refinement; the fit

is nearly perfect! Rwp = 4.87%. You can look at the YAG.lst output file for all the parameters and their respective esds. I’ve pasted some of my results in below for you to compare.

Number of function calls: 9  Number of observations:  2677  Number of parameters:  20

 Refinement time =    2.802s,    0.934s/cycle, for 3 cycles

 wR =    4.87%, chi**2 =      8893.61, reduced chi**2 =   3.35

…

Atoms:

   name      x         y         z      frac   Uiso

------------------------------------------------------

   Y(1)      Y:

 values:   0.12500   0.00000   0.25000   1.000 0.00453

 sig   :                                       0.00033

  Fe(2)     Fe:

 values:   0.00000   0.00000   0.00000   0.575 0.00347

 sig   :                                 0.008 0.00056

  Al(3)     Al:

 values:   0.00000   0.00000   0.00000   0.425 0.00347

 sig   :                                 0.008 0.00056

  Al(4)     Al:

 values:   0.37500   0.00000   0.25000   0.702-0.00021

 sig   :                                 0.007 0.00069

  Fe(5)     Fe:

 values:   0.37500   0.00000   0.25000   0.298-0.00021

 sig   :                                 0.007 0.00069

   O(6)      O:

 values:  -0.02940   0.05391   0.15061   1.000 0.00496

 sig   :   0.00005   0.00006   0.00006         0.00025

…

Sample Parameters:

 names :         Scale    Absorption     DisplaceX     DisplaceY

 values:      609.7746        0.0000     1759.4498    -2244.2982

 sig   :        3.2463                     50.3991      110.1830



 Instrument Parameters:

 names :         Lam        Zero    Polariz.           U           V           W

 value :    1.909000   -0.084918    0.000000  266.108676 -655.916341  585.853296

 sig   :                0.005611                3.981181    9.537597    5.489050

A useful display to examine is given by selecting Covariance in the GSAS-II data tree
